CYKE Bikes

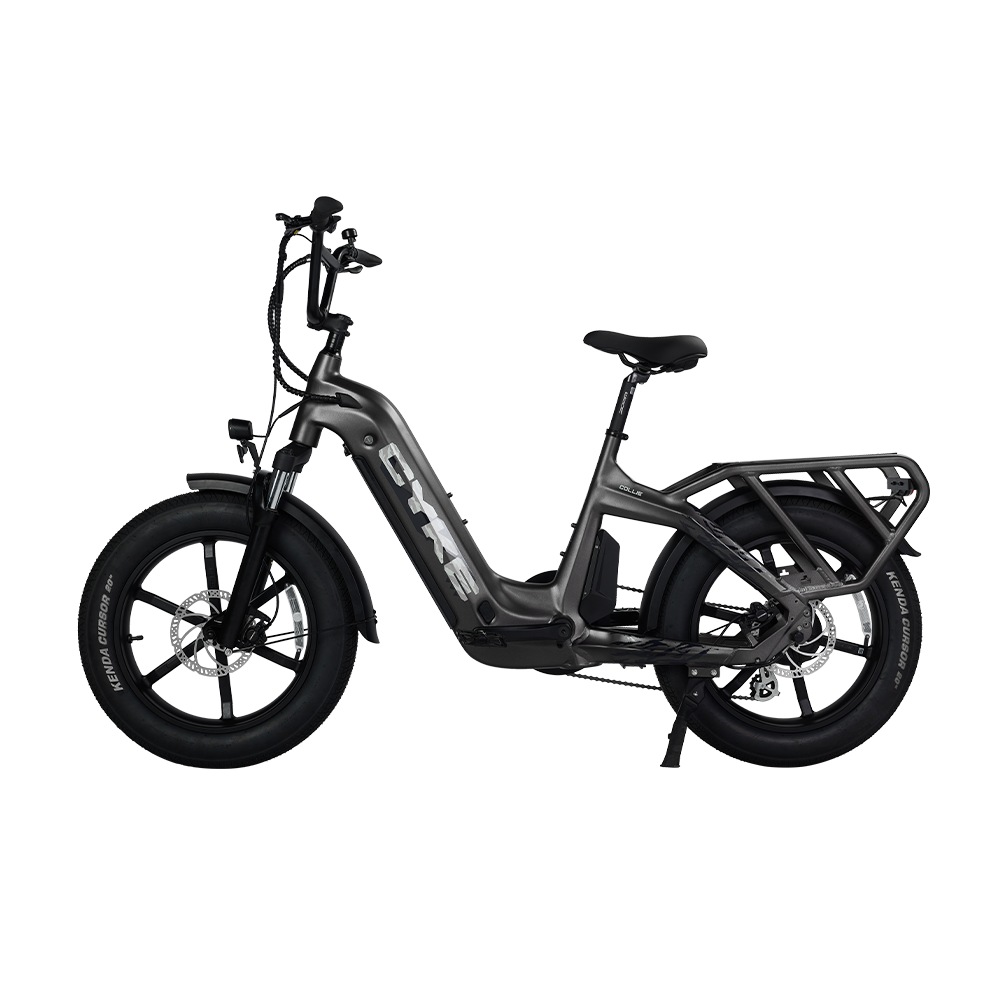

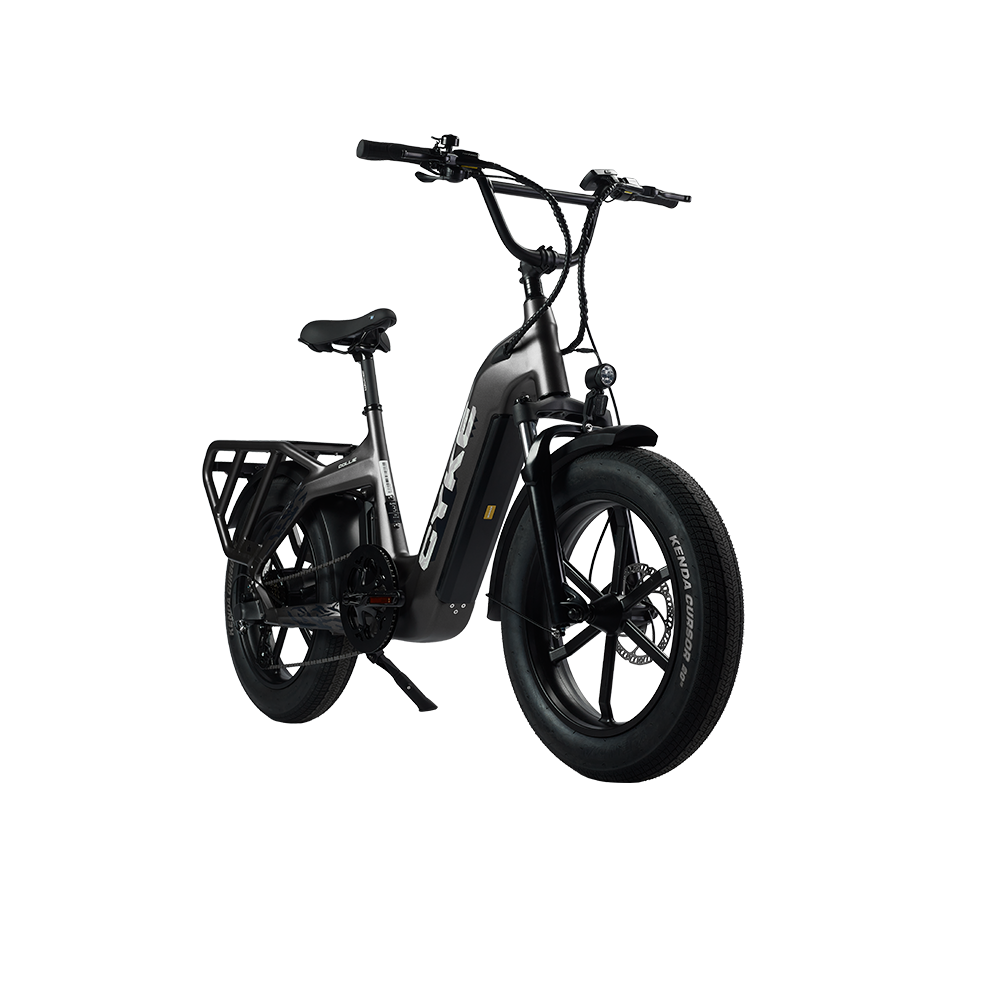

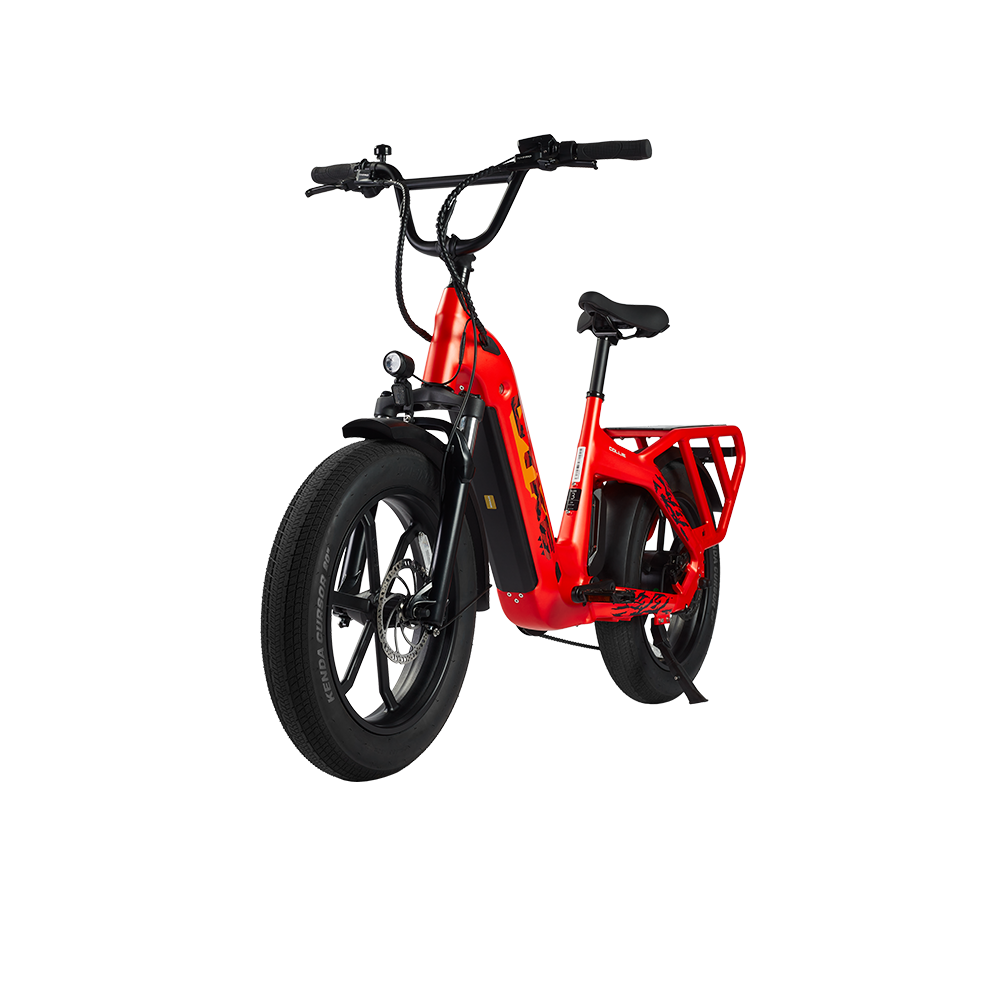

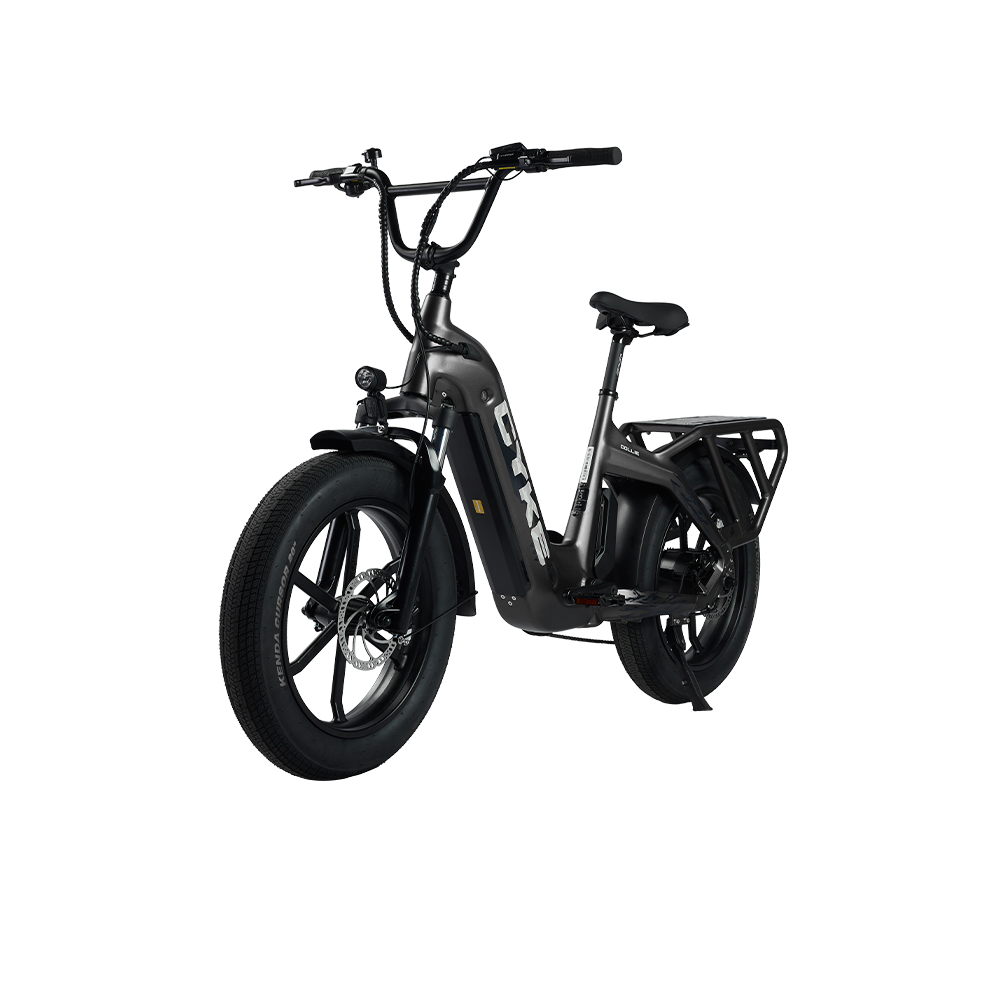

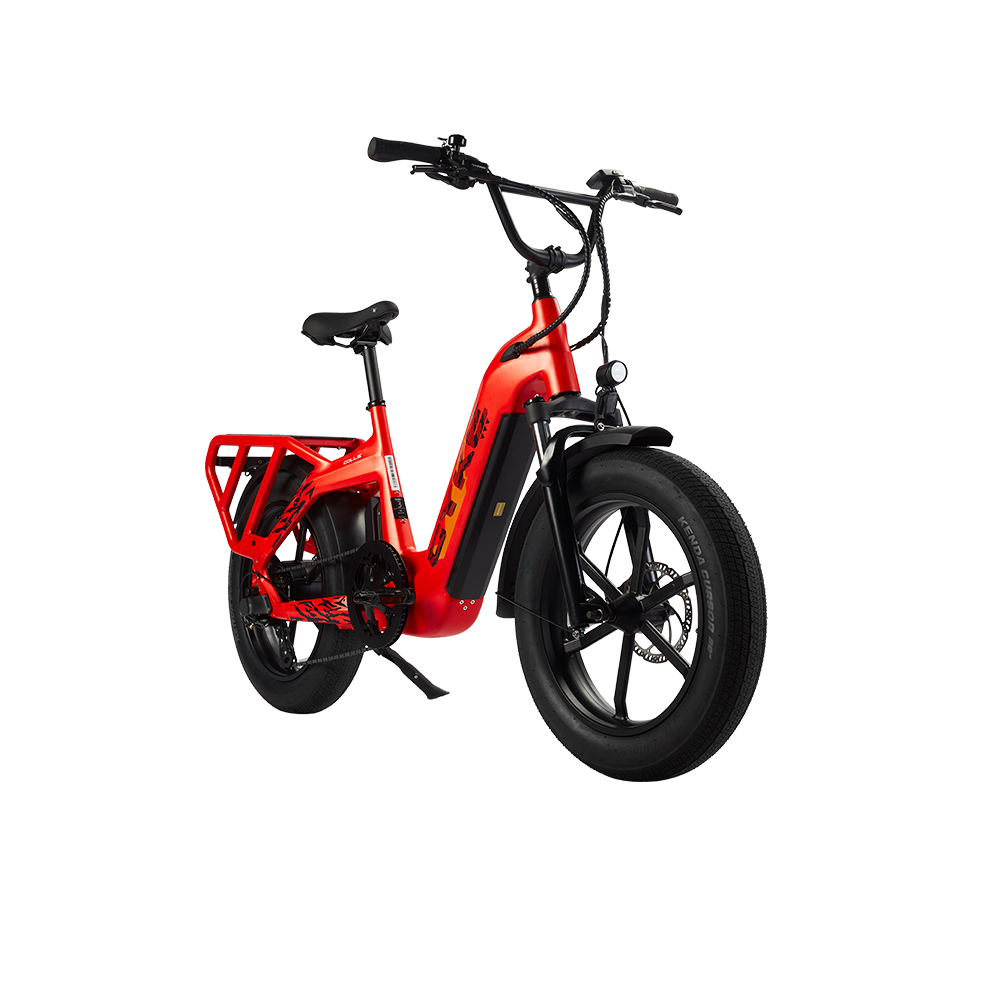

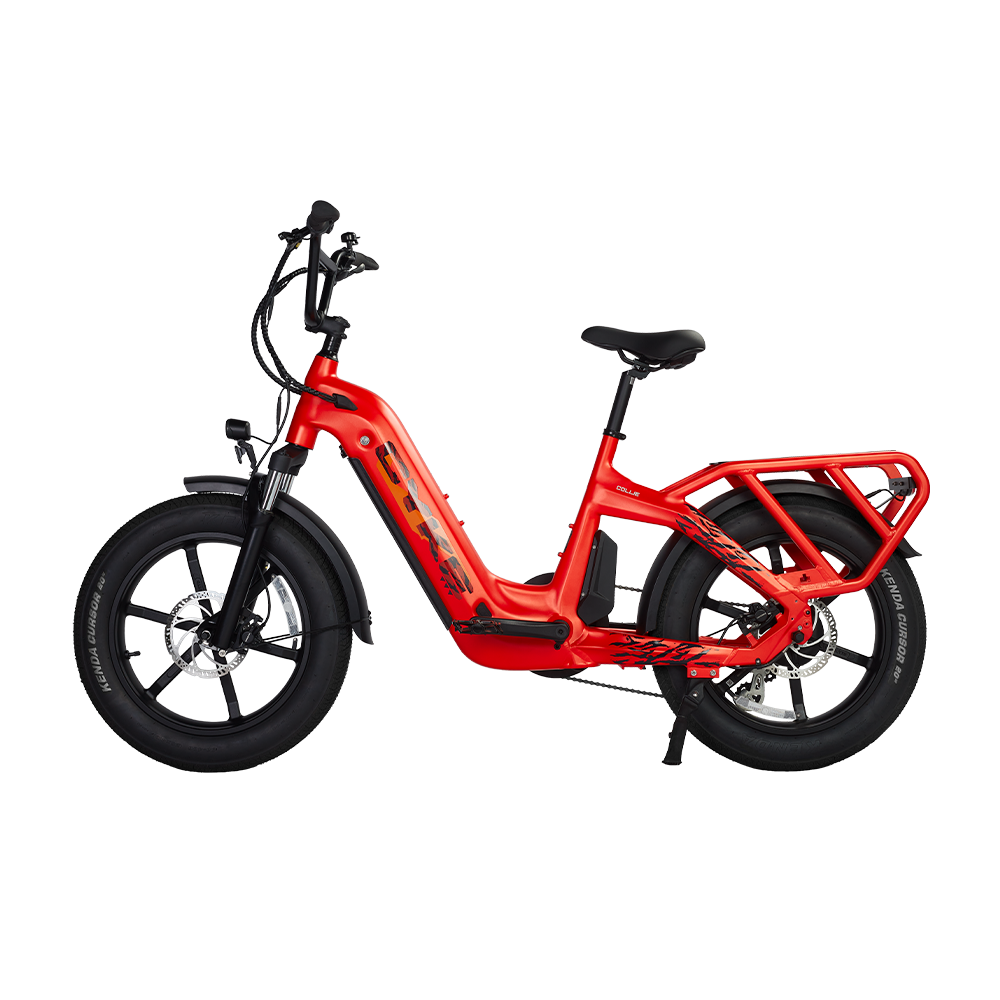

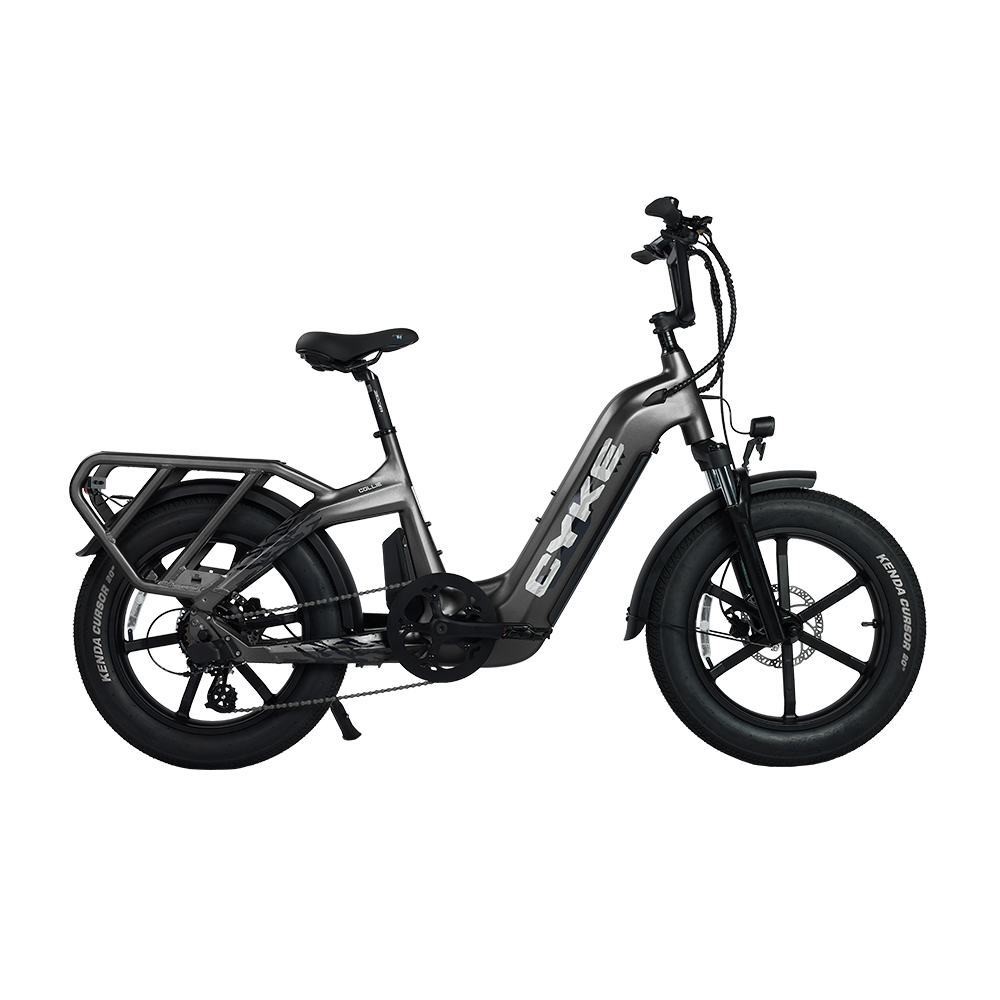

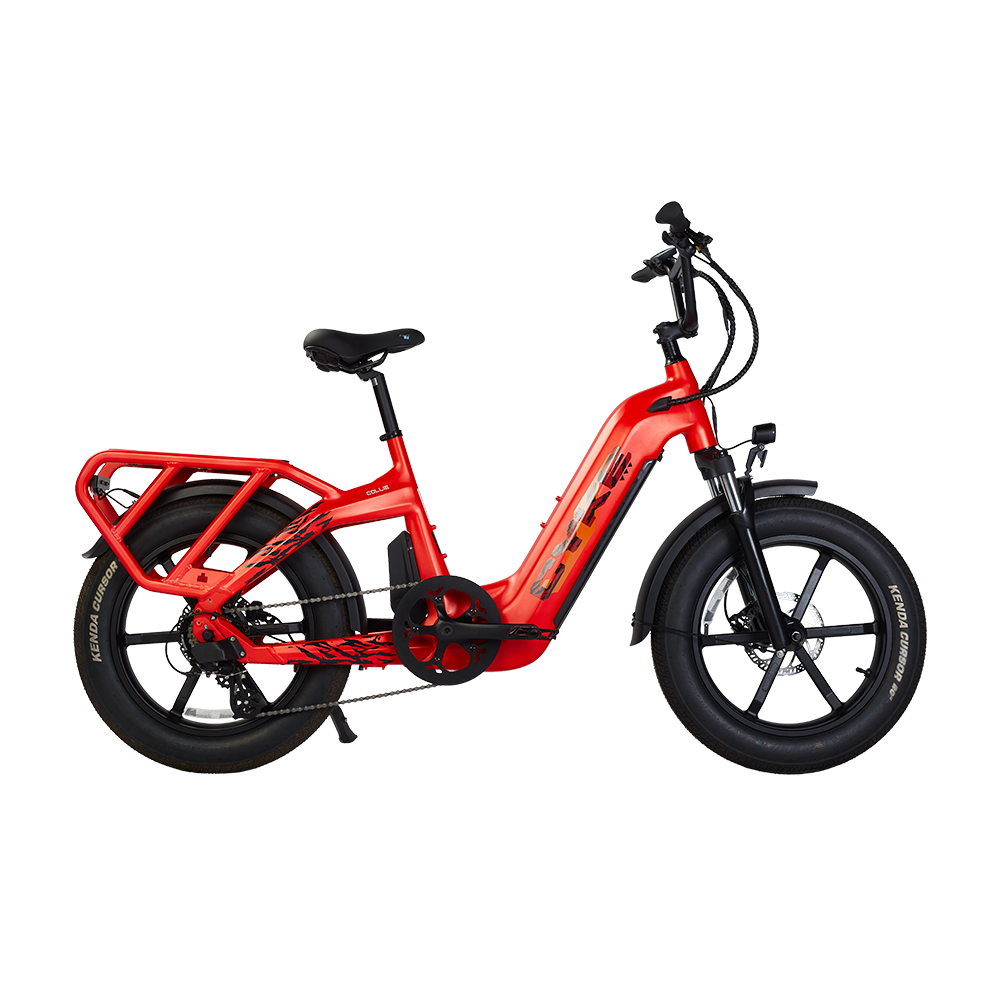

Collie Cargo eBike

Collie Cargo eBike

20 in stock

BUCA1GY

Color

The Collie Cargo eBike from CYKE's Family Series is your go-to solution for urban transport, designed for heavy-duty use. With a reinforced cargo rack and a robust 450 lbs load capacity, it’s perfect for carrying gear, groceries, or even a passenger. Powered by a 750W BAFANG hub motor and a 960Wh battery, the Collie offers an impressive range of up to 80 miles on a single charge. Its durable aluminum alloy frame ensures stability, while its sleek design, available in space gray or flame orange, blends practicality with modern style for versatile city riding.

Check out here for more info.

User Manual

Download Collie Owner's Manual

Download Collie's Quick Start Guide

Assembly Guide Video

Watch the Collie Assembly Guide Video

View full details

Specifications

E-bike System
Battery 48V/20Ah, 960Wh Lithium-ion battery with LG cells
Motor BAFANG 750W rear hub motor
Range Up to 80 miles, depending on pedal effort
Display 2.0" color matrix HMI display
Charger 3A
Charging Time Approx. 6-7 hours
Pedal Sensor Speed sensor
Max Speed 85 Nm of torque, 28 MPH
Throttle Thumb throttle
Pedal Assist Modes 15
Frameset
Frame Aluminum alloy
Fork RST front suspension fork, 60mm travel
Wheels
Rim Aluminum ring, 12G 36H AV
Tire KENDA 20x4.0" fat tires
Front Hub 12G 36H
Spoke Black stainless 12G
Drivetrain
Shifter Shimano 7-speed
Crank Arm 52ED, 170mm
Components
Saddle Black nubuck leather
Grips 140mm black grips
Brakes TEKTRO hydraulic disc brake
Brake Rotor 180mm brake rotor
Front Light 40 LUX headlight
Rear Light Brake rear light
Rear Rack YES
Fenders Front & rear fenders
Weight
Weight Limit 450 lbs
Net Weight 92.2 lbs
Gross Weight 120.2 lbs
Box Dimension 62.0 x 11.3 x 30.9 in
