CYKE Bikes

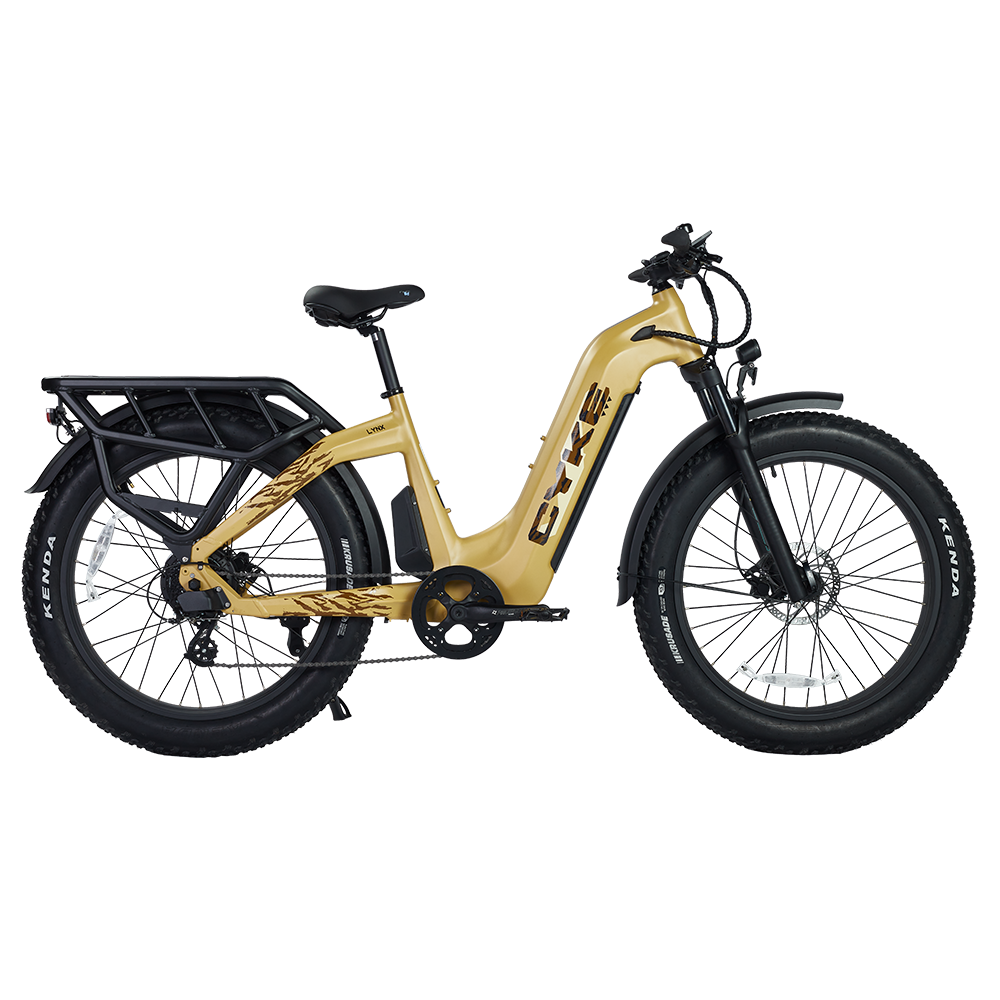

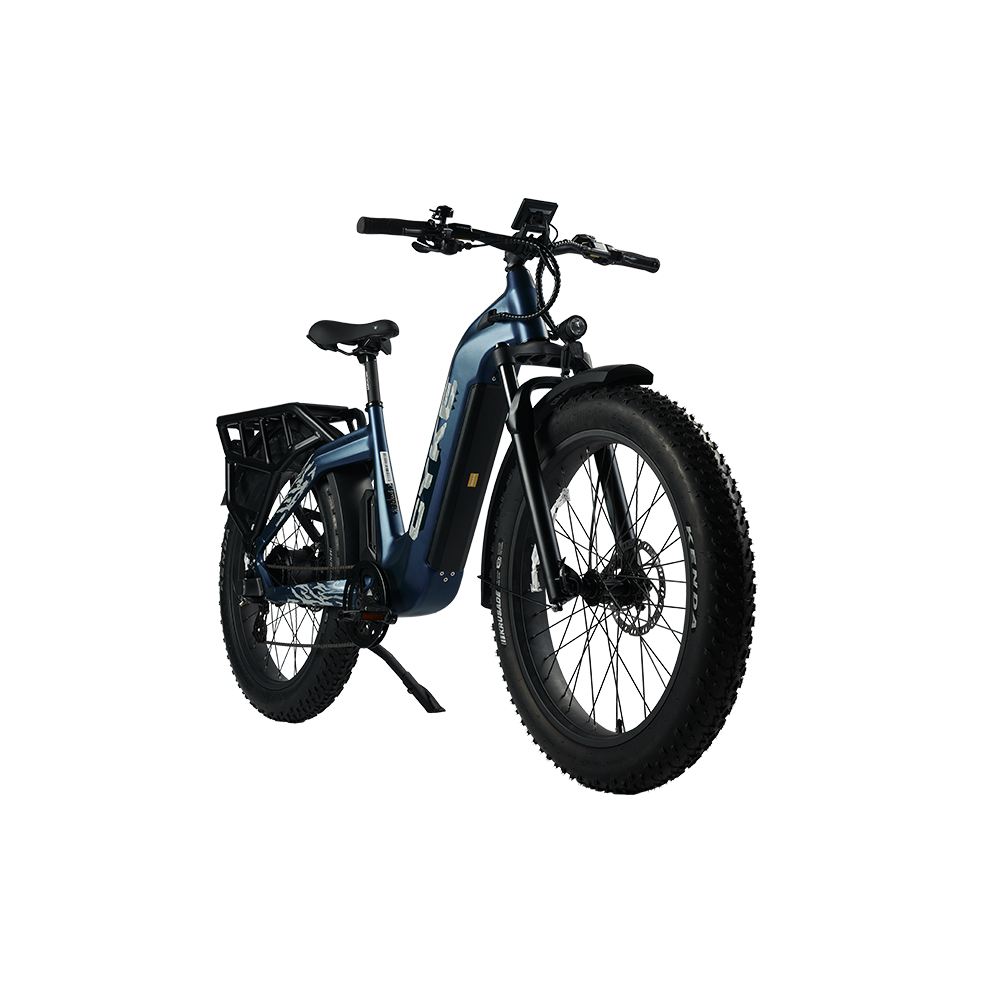

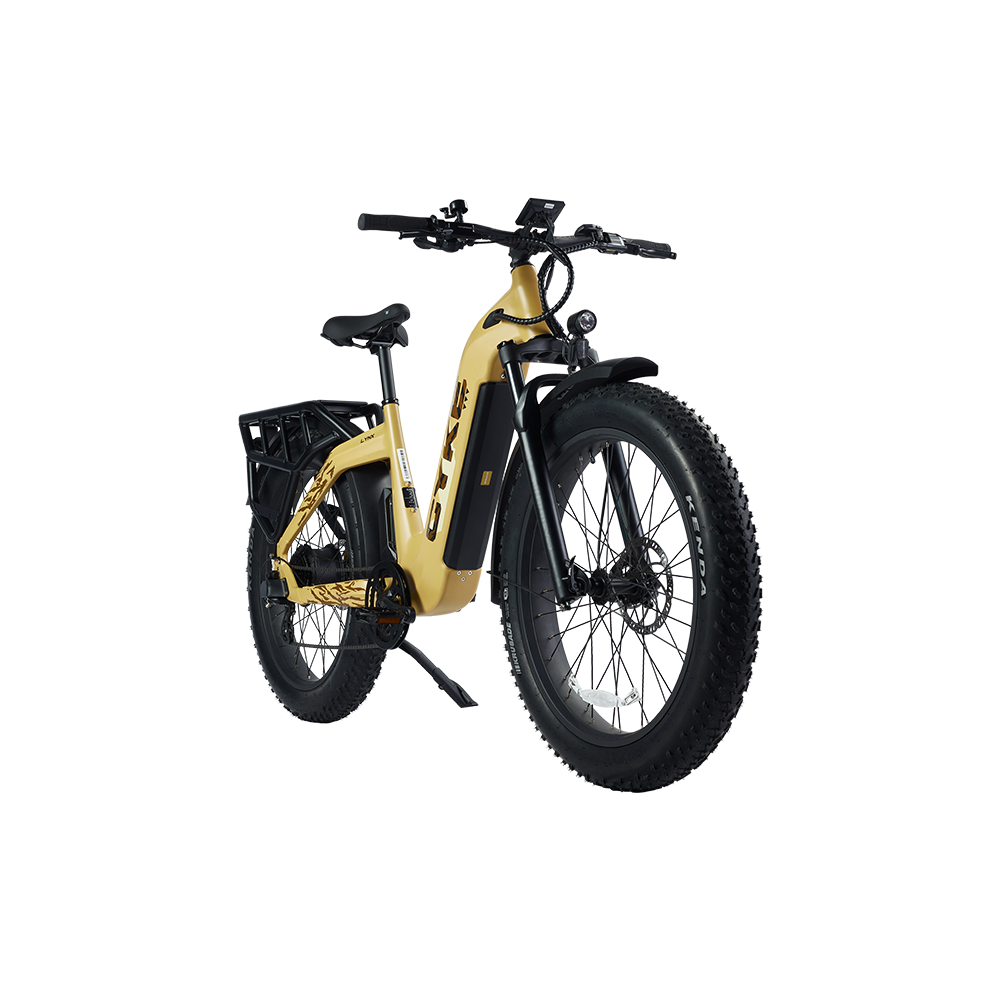

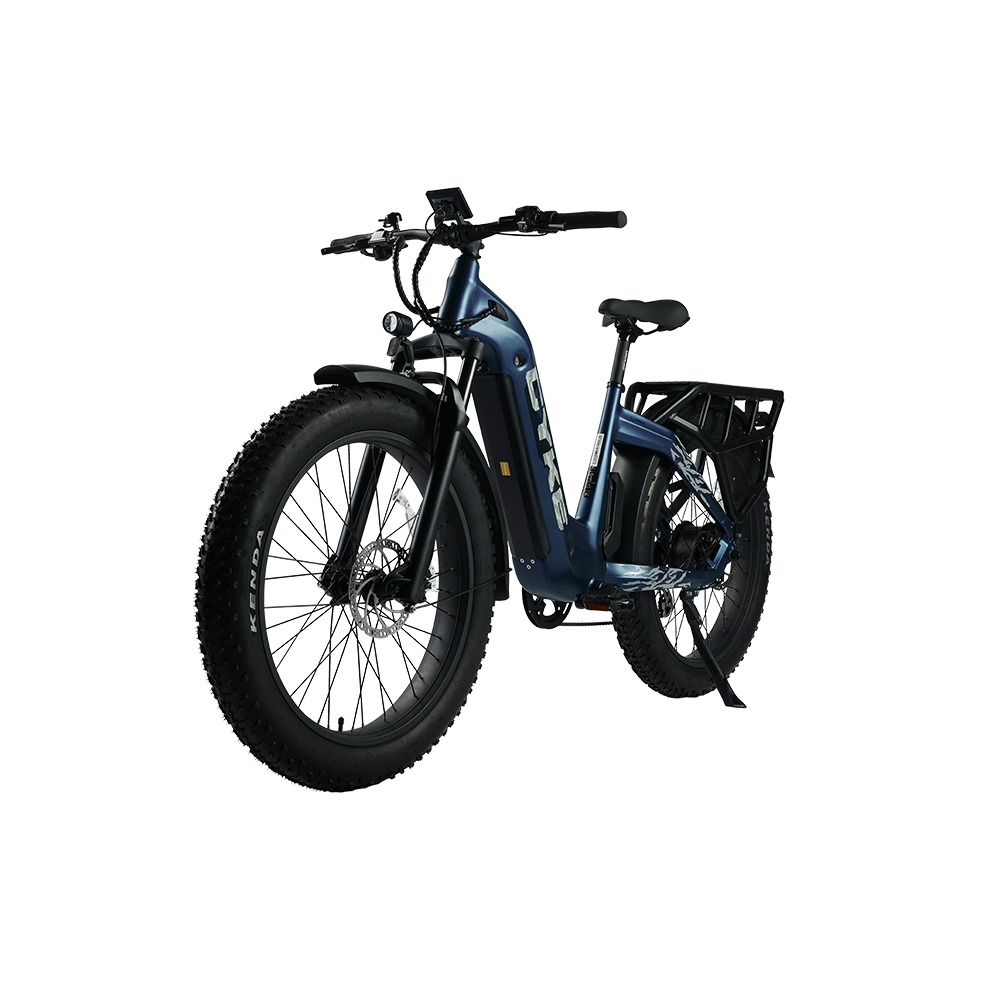

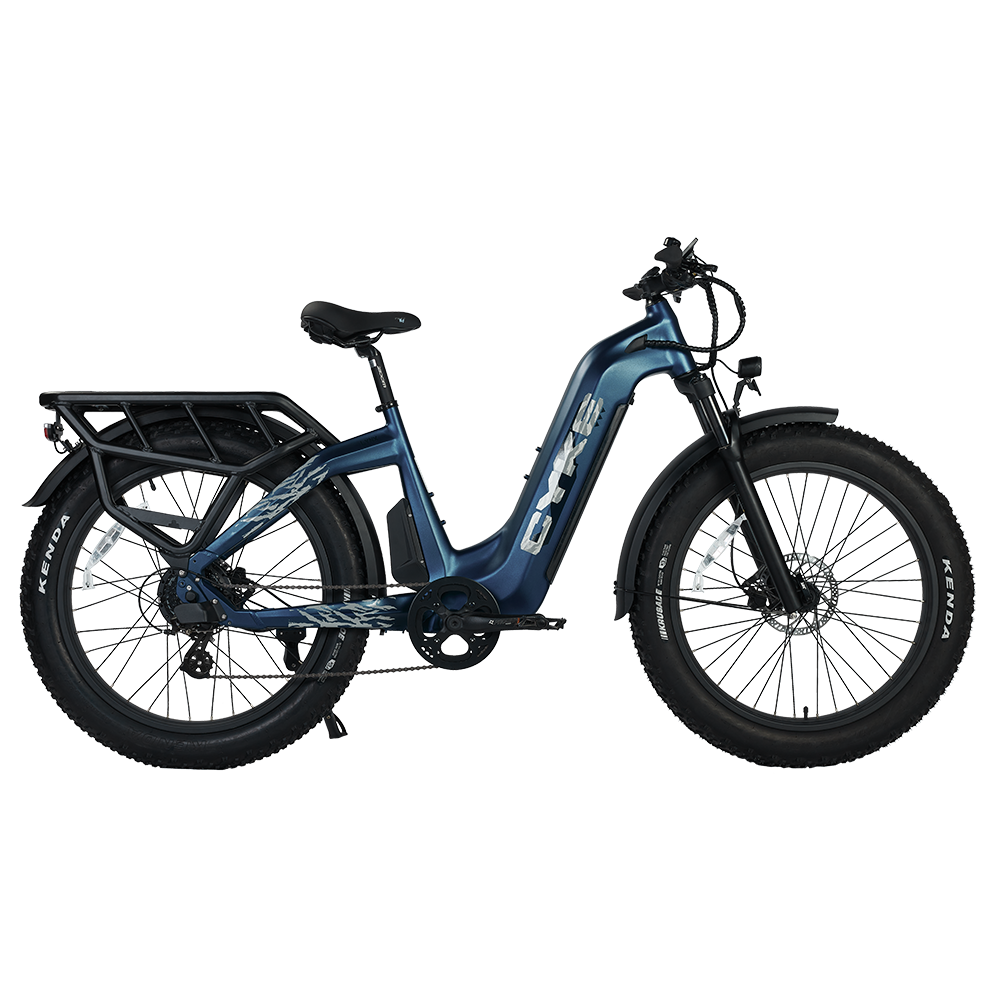

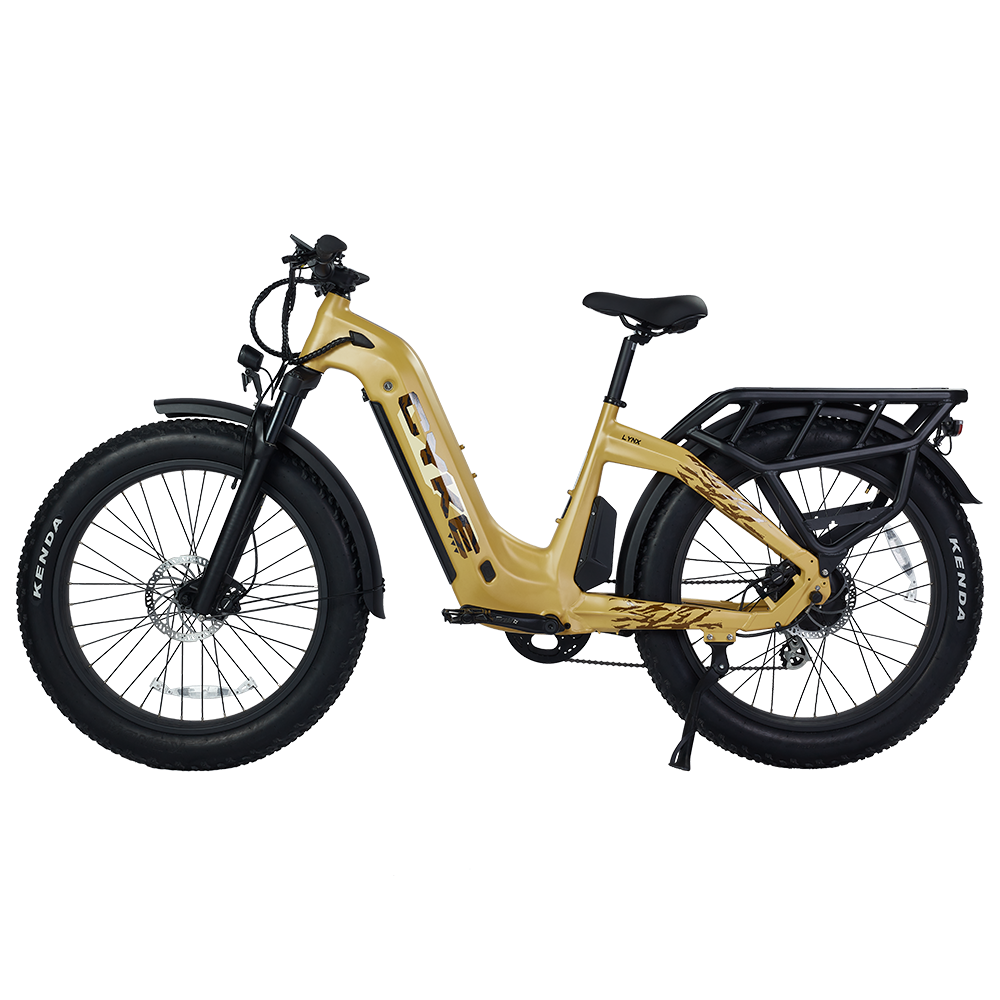

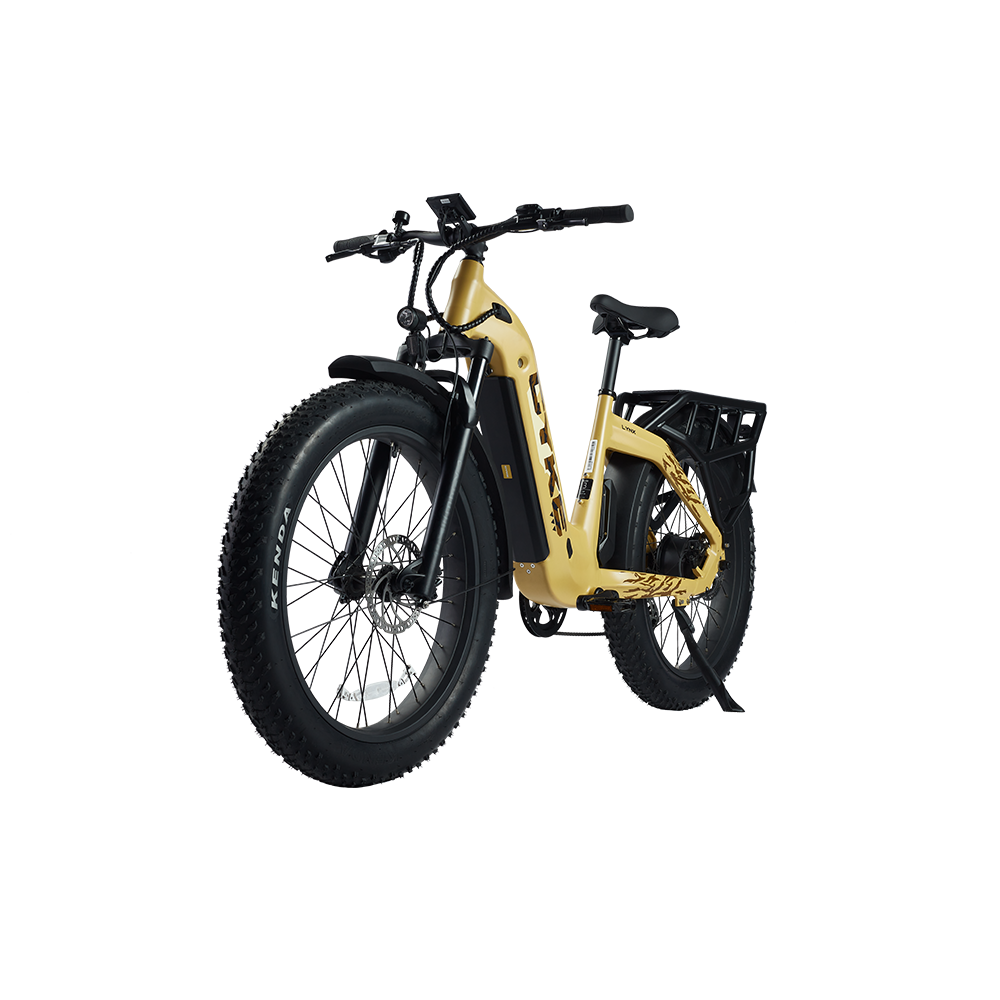

Lynx Commuter eBike

Lynx Commuter eBike

36 in stock

BUBA1BL

Color

Introducing the Lynx eBike, a perfect choice for daily commuters seeking ease and performance. Its step-through design eliminates the front crossbar, ensuring easy mounting and dismounting for effortless urban travel. Built from aviation-grade aluminum alloy, the Lynx supports up to 450 lbs, providing robust durability for city use. Powered by a 960Wh battery, it offers an impressive range of up to 80 miles per charge, making it ideal for long commutes. Equipped with a 750W BAFANG motor, the Lynx delivers smooth, efficient performance across urban terrains. With 105 adaptive pedal assist modes, riders enjoy optimal control tailored to their needs.

Check out here for more info.

User Manual

Download Lynx Owner's Manual

Download Lynx Quick Start Guide

Assembly Guide Video

Watch the Lynx Assembly Guide Video

View full details

Specifications

E-bike System
Battery 48V/20Ah, 960Wh Lithium-ion battery with LG cells
Motor BAFANG 750W rear hub motor
Range Up to 80 miles, depending on pedal effort
Display 3.5" color matrix HMI display
Charger 3A
Charging Time Approx. 6-7 hours
Pedal Sensor Speed sensor
Max Speed 85 Nm of torque, 28 MPH
Throttle Thumb throttle
Pedal Assist Modes 15
Frameset
Frame Aluminum alloy
Fork RST front suspension fork, 95mm travel
Wheels
Rim Aluminum ring, 12G 36H AV
Tire KENDA 26x4.0" fat tires
Front Hub 12G 36H
Spoke Black stainless 12G
Drivetrain
Shifter Shimano 8-speed
Crank Arm 42ED, 170mm
Components
Saddle Black nubuck leather
Grips 140mm black grips
Brakes TEKTRO hydraulic disc brake
Brake Rotor 180mm brake rotor
Front Light 40 LUX headlight
Rear Light Brake rear light
Rear Rack YES
Fenders Front & rear fenders
Weight
Weight Limit 450 lbs
Net Weight 94.8 lbs
Gross Weight 130.3 lbs
Box Dimension 67.0 x 12.6 x 34.9 in
